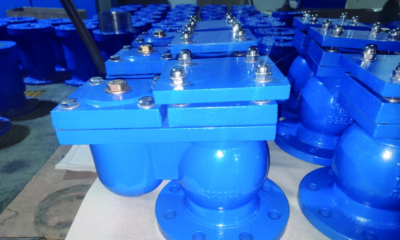

Air Release Valve

The air valve is used in independent heating systems, centralized heating systems, heating boilers, central air conditioning, underfloor heating, and solar heating systems for pipeline venting.

Since water usually contains a certain amount of dissolved air, and the solubility of air decreases as the temperature rises, gas gradually separates from the water during circulation and tends to accumulate, forming large bubbles or even gas columns.

With the continuous water supply, gas is often generated.

Parameter

Diameter Range :
DN50-DN300
Maximum Working :
PN16
Applied Pressure :
Shell Test – 24 Bar
Seat Test – 17.6 Bar
Coating :
Fusion Bonded Epoxy Paint
(Avr. 250 microns DFT Above)
Features :
Air valve
Specification :
Design standard to AWWA C5122
End Flanges Dimension to EN1092-2
Testing standard to EN1226

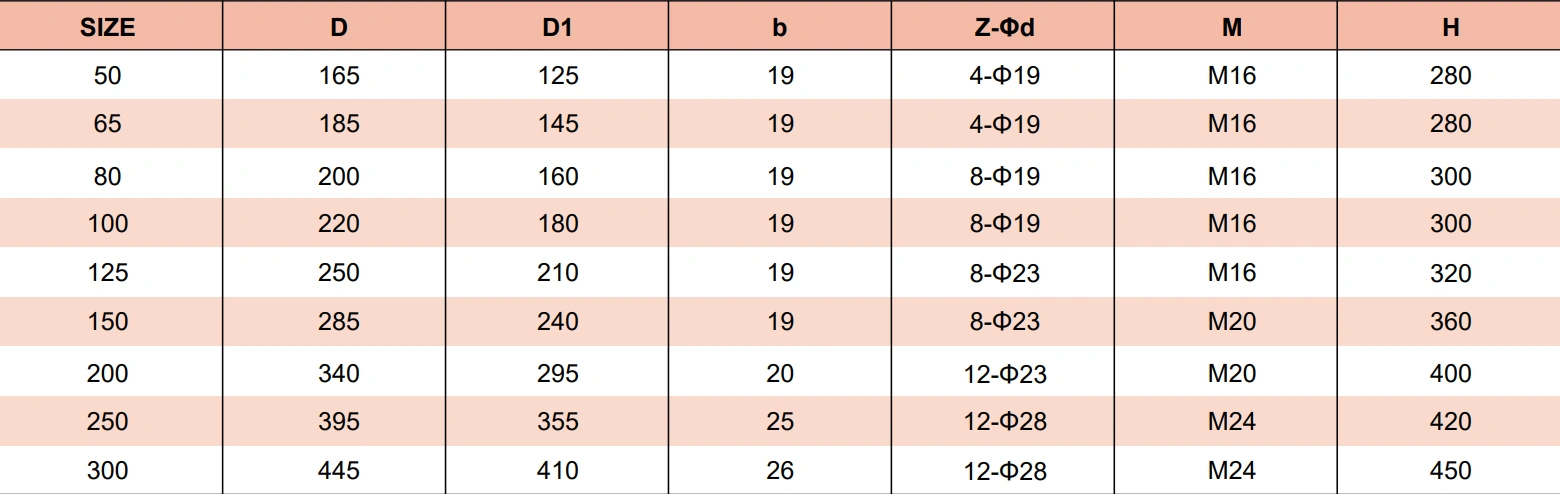

Dimension

Specifications

Gallery
